Description
| CPU | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Supports Intel® 14 nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to Asus website for CPU support list | |
| **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® Z490 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.) /4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.) /3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400 /2133 MHz Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphic | Integrated Graphics Processor |
| 1 x DisplayPort 1.4 * | |
| 1 x HDMI 1.4b | |
| *Graphics specifications may vary between CPU types. | |
| **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to Asus website for any update. | |
| Multi-GPU Support | Supports NVIDIA 2-Way SLI® Technology |
| Supports AMD 3-Way CrossFireX™ Technology | |
| Expansion Slots | Intel® 10th Gen Processors |
| 2 x PCIe 3.0 x16 (x16 or dual x8) | |
| Intel® Z490 Chipset | |
| 1 x PCIe 3.0 x16 (max at x4 mode) | |
| 3 x PCIe 3.0 x1 | |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel® Z490 Chipset : | |
| 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) | |
| 6 x SATA 6Gb/s port(s) | |
| Support Raid 0, 1, 5, 10 | |
| Intel® Optane™ Memory Ready | |
| LAN | Intel® I225-V 2.5Gb Ethernet |
| ASUS LANGuard | |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| – Dual OP Amplifiers | |
| – Impedance sense for front and rear headphone outputs | |
| – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| – Supports up to 32-Bit/192kHz playback * | |
| Audio Feature : | |
| – SupremeFX Shielding™ Technology | |
| – Gold-plated jacks | |
| – Optical S/PDIF in port(s) at back panel | |
| – Audio Shielding | |
| – Premium Japanese audio capacitors | |
| – Audio Cover | |
| * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
| USB Ports | Rear USB Port ( Total 8 ) |
| 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x Type-C) | |
| 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) | |
| 2 x USB 2.0 port(s) | |
| Front USB Port ( Total 7 ) | |
| 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®) | |
| 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) | |
| 2 x USB 2.0 port(s) | |
| ROG Exclusive Features | ROG Exclusive Software |
| – RAMCache III | |
| – CPU-Z | |
| – Sonic Radar III | |
| – Overwolf | |
| – Sonic Studio III + Sonic Studio Virtual Mixer | |
| ROG Aluminum heatsink cover | |
| Special Features | AURA : |
| – Aura RGB Strip Headers | |
| – Addressable Gen 2 Header | |
| ASUS Exclusive Features : | |
| – Pre- mounted I/O shield | |
| ASUS EZ DIY : | |
| – ASUS USB BIOS FlashBack™ | |
| ASUS Q-Design : | |
| – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| – ASUS Q-Slot | |
| – ASUS Q-DIMM | |
| DIY Friendly Design | |
| – ProCool II | |
| – SafeSlot | |
| Software Features | ROG Exclusive Software |
| – RAMCache III | |
| – ROG CPU-Z | |
| – GameFirst VI | |
| – Sonic Studio III + Sonic Studio Virtual Mixer | |
| – Sonic Radar III | |
| – DTS® Sound Unbound | |
| – Overwolf | |
| – Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| – Aura Creator | |
| – Aura Sync | |
| AI Suite 3 | |
| -5-way Optimization with AI Overclocking. | |
| TPU | |
| EPU | |
| Digi+ VRM | |
| Fan Xpert 4 | |
| Turbo app | |
| -EZ update | |
| WinRAR | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| FlexKey | |

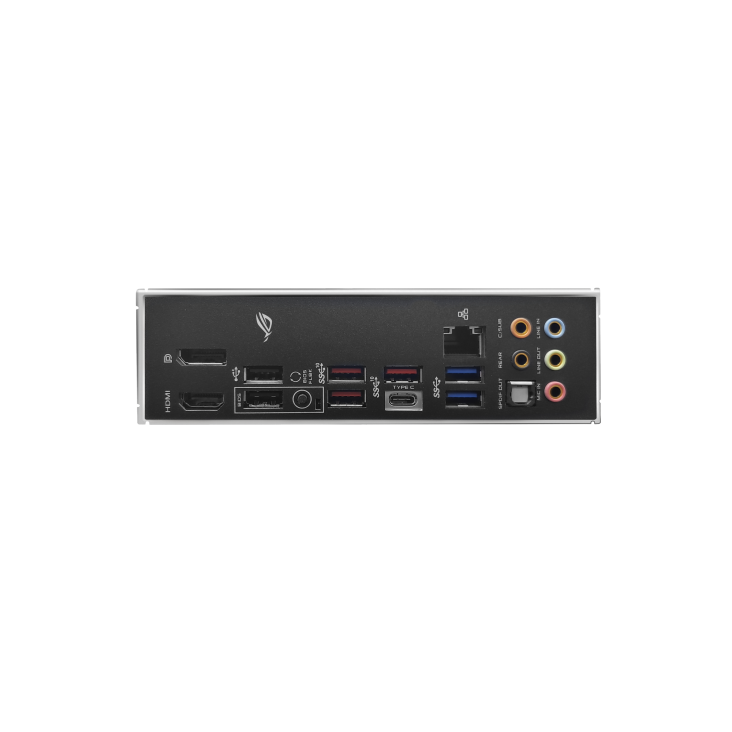

| Back I/O Ports | 1 x Intel® I225-V 2.5Gb Ethernet |
| 1 x DisplayPort | |
| 1 x HDMI | |
| 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®) | |
| 2 x USB 3.2 Gen 1 | |
| 2 x USB 2.0 | |
| 1 x Optical S/PDIF out | |
| 1 x USB BIOS FlashBack™ Button(s) | |
| 5 x Gold-plated audio jacks | |
| Internal I/O Ports | 1 x CPU Fan connector(s) |
| 1 x CPU OPT Fan connector(s) | |
| 2 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x W_PUMP+ connector | |
| 2 x Addressable RGB header | |
| 1 x AAFP connector | |
| 2 x Aura RGB Strip Headers | |
| 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) | |
| 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) | |
| 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) | |
| 1 x M.2 with E key for Wi-Fi module | |
| 1 x COM port(s) connector(s) | |
| 6 x SATA 6Gb/s connector(s) | |
| 1 x Thunderbolt header(s) | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| 1 x System panel(s) (Chassis intrusion header is inbuilt) | |
| 1 x Thermal sensor connector(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x CPU_OV jumper | |
| 1 x M.2 Fan Header | |
| 1 x VRM_HS_FAN Header | |
| Accessories | User’s manual |
| 4 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Screw Package | |
| 1 x Supporting DVD | |
| 1 x ROG Strix stickers | |
| 1 x Cable ties pack(s) | |
| 1 x Extension Cable for RGB strips (80 cm) | |
| 1 x Extension cable for Addressable LED | |
| 1 x Thermistor cable(s) | |
| 1 x ROG Thank you card | |
| 1 x 2-in-1 Rubber pad | |
| 1 x Wi-Fi moving antenna | |
| 1 M.2 SSD screw package(s) | |
| 1 M.2 Key E screw package(s) | |
| 1 ROG key chain | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Note | ***Features, Price and Specifications are subject to change without notice. |
