APC 1100VA, 230V Back UP UPS

Output power capacity: 660 Watts / 1.1kVA

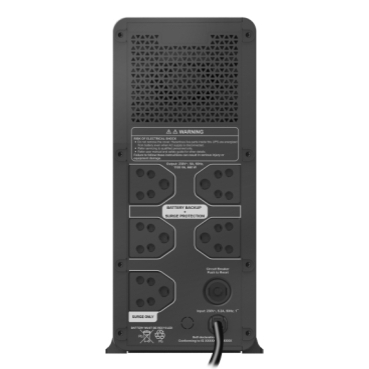

Output Connections

(1) India 2/3-pin 6A (Surge Protection)
(4) India 2/3-pin 6A (Battery Backup)
Nominal Output Voltage: 230V
Nominal Input Voltage : 230V
Input Connections: India 3-pin 6A
Cord Length: 1.5meters
APC Back-UPS 1100VA, 230V, without auto shutdown software, India
Output
Max Configurable Power (Watts) 660 Watts / 1.1kVA
Efficiency at Full Load 72.00%
Output Frequency (sync to mains) 50 Hz Sync to mains
Topology Line interactive
Waveform type Stepped approximation to a sinewave
Transfer Time 10 ms typical : 12 ms maximum
Input
Input frequency 45 – 65 Hz Auto-sensing
Input voltage range for main operations 145 – 290 V
Number of Power Cords 1
Efficiency at Full Load 72.00%
Batteries & Runtime
Battery type Lead-acid battery
Typical recharge time 6hour(s)
Battery Volt-Amp-Hour Capacity 168
Communications & Management
Control panel LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 255Joules
Physical
Maximum Height 282MM, 28.2CM
Maximum Width 132MM, 13.2CM
Maximum Depth 259MM, 25.9CM
Net Weight 8.98KG
Shipping weight 10.21KG
Shipping Height 394MM, 39.4CM
Shipping Width 203MM, 20.3CM
Shipping Depth 384MM, 38.4CM
Color Black
Environmental
Operating Temperature 0 – 40 °C
Operating Relative Humidity 0 – 95 %
Operating Elevation 0 – 3048meters
Storage Temperature -15 – 45 °C
Storage Elevation 0 – 15240meters
Audible noise at 1 meter from surface of unit 45.0dBA
Conformance
Approvals BIS
Standard warranty 1 year repair or replace
Sustainable Offer Status
RoHS Compliant
